Component Dynamic Behavior Template

Dynamic behavior template for components.

dynamic_behavior.md

Copy the contents to an empty markdown file and start editing. Remove the help text in block quotes and any unused sections.

# Dynamic Behavior for ComponentName \{#DynamicBehavior_ComponentName}

<!-- This template is to be used to describe the dynamic behavior of a component, it shows how the component behaves for important use cases. It shall be used together with the main markdown file describing the complete component. -->

---

<!-- List of different behaviors with sequence diagrams or activity diagrams -->

## Dynamic Behavior Title1

<!-- Textual description for the behavior. -->
Behavior description...

```plantuml
@startuml
!include dynamic_behavior_sequence.puml
@enduml
```

## Dynamic Behavior Title2

<!-- Textual description for the behavior. -->
Behavior description...

```plantuml
@startuml
!include dynamic_behavior_activity.puml
@enduml
```

Note: The "!include dynamic_behavior_activity.puml" above don't work in an ADO Wiki. You have to convert the .puml to a .png and include it in the markdown. It may work in Visual Studio with the right plugins - but it doesn't help much if it is visualized with the ADO Wiki.

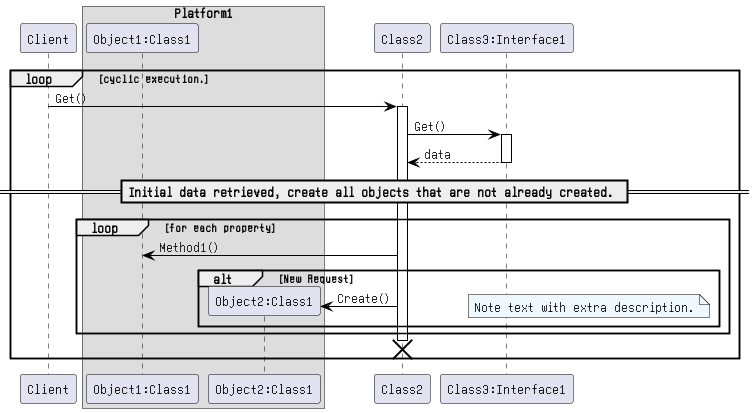

dynamic_behavior_sequence.puml

Copy the text to an empty plantuml file and start editing.

@startuml

skinparam sequence {
  ArrowColor Black
  ActorBorderColor Black
  ParticipantBorderColor Black
  LifeLineBorderColor Black
  BoxBorderColor Black
}

skinparam note {
  BorderColor Black
  BackgroundColor AliceBlue
}

participant Client
box "Platform1"
participant "Object1:Class1" AS Obj1
participant "Object2:Class1" as Obj2
end box
participant "Class2" AS Class2
participant "Class3:Interface1" AS IF1

loop cyclic execution.
Client -> Class2: Get()
activate Class2
Class2 -> IF1: Get()
activate IF1
IF1 --> Class2: data
deactivate IF1
== Initial data retrieved, \
create all objects that are not already created. ==
loop for each property
Class2 -> Obj1: Method1()
alt New Request
Class2 -> Obj2**: Create()
note right
Note text with extra description.
end note
end /'end alt New Request'/
end /'end loop for each property'/
destroy Class2
end /'end loop cyclic execution'/

@enduml

dynamic_behavior_activity.puml

Copy the text to an empty plantuml file and start editing.

@startuml

<!-- <style>
activityDiagram {
  BorderColor black

  diamond {
    LineColor black
  }
  arrow {
  }
  partition {
    LineColor black
  }
  note {
    FontColor Blue
    LineColor Navy
    BackgroundColor #ccf
  }
}
document {
   BackgroundColor transparent
}
</style> -->

title Template example
start
:ClickServlet.handleRequest();
:new page;
if (Page.onSecurityCheck) then (true)
  :Page.onInit();
  note left: Init the page
  if (isForward?) then (no)
    :Process controls;
    if (continue processing?) then (no)
      stop
    endif

    if (isPost?) then (yes)
      :Page.onPost();
    else (no)
      :Page.onGet();
    endif
    :Page.onRender();
  endif
else (false)
endif

if (do redirect?) then (yes)
  :redirect process;
else
  if (do forward?) then (yes)
    :Forward request;
  else (no)
    :Render page template;
  endif
endif

stop
@enduml
