Certifications

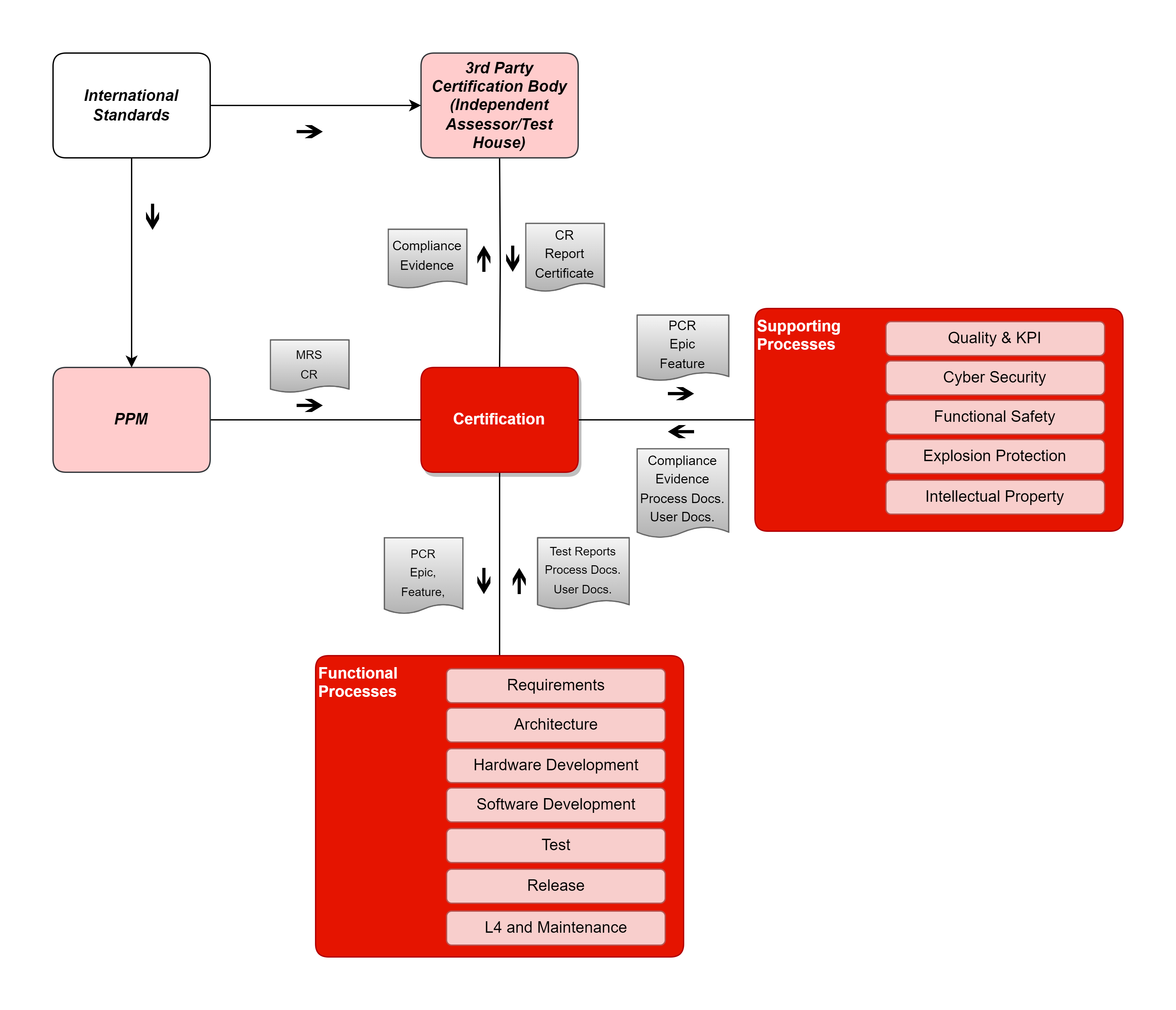

Product Portfolio Management (PPM) defines the standards a product or system must fulfill based on legal requirements and on a business perspective. The system requirements (SRs) specify the regulatory requirements. PPM and R&D collaborate to ensure the standards are followed.
Regulatory requirements often impact R&D processes (e.g., cyber security, and functional safety). They can be implemented directly by the system or development streams for a specific release and later integrated into the common process framework.
Principles
- To support organization management
- To support process management
- To support product release
Policies and Standards
Policies, standards, and ABB instructions that are relevant to PCP R&D. See PAPCP Certificates and PAPCP Strategy - People, Products, Perfection for an overview of the policies, standards, and instructions for all organizational functions in PCP.
Activities
Certificates/Regulations
The table below lists the certifications that the PCP R&D organization has for its current products.
Products related to the certificate, standards or directive are listed in 7PAA008827D1 800xA cert compact.
Artifacts
| Certificates/Regulations/Category | Directives/Function |
|---|---|
| CE marking and the Declaration of Conformity | European conformity (EU). CE marking is required for products manufactured anywhere in the world that are then placed into the EU market. |
| CE required directives/ standards | RoHS DIRECTIVE/2011/65/EU EMC DIRECTIVE/2014/30/EU ATEX DIRECTIVE/2014/34/EU LVD DIRECTIVE/2014/35/EU |
| WEEE | The Waste Electrical and Electronic Equipment Directive is a European Union DIRECTIVE/2012/19/EU, concerned with waste electrical and electronic equipment. |
| Mechanical operating conditions | IEC 61131-2 Industrial-process measurement and control - Programmable controllers - Part 2 Protection class Altitude Temperature changes Climatic operating conditions … |
| Marine | Specifies minimum performance requirements, methods of testing, and required test results for maritime navigation and radio communication equipment and systems (different regions have different certificates, but they are all based on similar test cases) |
| Electrical Safety | Europe (LVD Directive): - EN 61010-1 - EN 61010-2-201 US (National Electric Code NEC): - UL 61010-1 - UL 61010-2-201 - UL508 Canada (Canadian Electrical Code CEC): - CSA C22.2 No. 61010-1 - CSA C22.2 No. 61010-2-201 International (IECEE): - IEC 61010-1 - IEC 61010-2-201 |
| Explosion protection | Europe: ATmosphères EXplosives (ATEX) US: Hazardous location and areas, NEC500, NEC505, NEC506 Canada: Hazardous location and areas, CEC Section 18 International: IECEx-System Brasil: National Institute of Metrology, Standardization and Industrial Quality (INMETRO) China: China Compulsory Certification (CCC) |
| Corrosion protection | ISA-S71.04: G3 |
| Functional Safety | Electrical, electronic and programmable electronic control systems IEC 61508 (SIL3) Functional Safety Management IEC 61508-1 |
| Cyber security | IEC-62443-4-2-Certified-Components IEC-62443-3-3-Certified-Systems IEC-62443-4-1-Certified-Development-Organizations |
| Machinery (safety) | NFPA 79 EN ISO 14118 EN ISO 13850 |
| Process Industry (safety) | ISA-61511-1 EN 54-2: 1997 / A1 NFPA 72 |
| Burner Systems (safety) | EN 298 EN 50156-1 NFPA 85 … |
| QMS | Quality management system ISO9001 … |
| Ex quality management | Add on to ISO 9001: - ISO / IEC 80079-34 ABB PCP is a certified manufacturer for equipment for explosive atmospheres. |
Dependencies
Reference
ABB Group Instructions
- CRTE-01 Corporate Regulations - Technology
- GF/LI-35.04 Open Source Software
- Open Source Policy
- Security Policies and Standards
PAPCP Policies and Certificates
ABB Group Practices and Recommendations

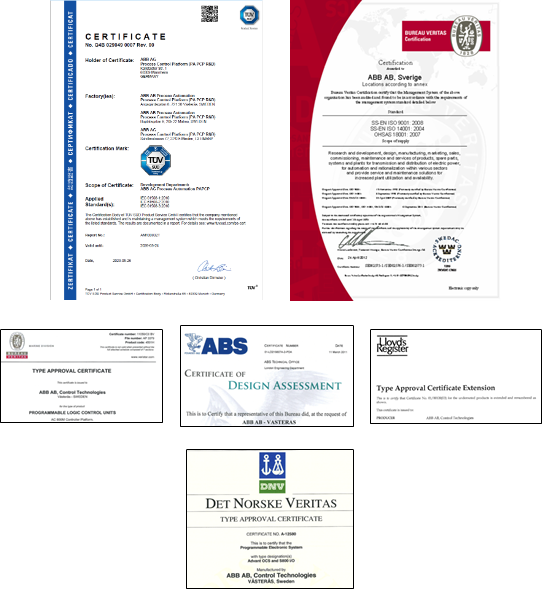

Certificates
Received certificates relevant to PCP R&D. For more details, see 7PAA010007 Certificate Overview.
