Reference: Structure of Combitrol & Combimatic documentation
This page is intended to give an overview of what kind of documentation is present for the Combitrol & Combimatic documentation.
The Combitrol & Combimatic product line was first developed in the 1960's which means that the documnetation needs and requirements were different when these products were created. Therefore this product line cannot be expected to comply to the QMS of today. Here we will cover what exists today.
Documentation
The documentation for a given product:
- Article number = order number = YL number
- If the document number starts with a YL then it means Parts list.
| Ending letter in document number | Description | Available for contract customers |
|---|---|---|
| A | Circuit diagram or schematics | x |
| B | Assembly drawing (swe: sammanställningsritning) | x |
| C | Format drawing (swe:formatritning) | x |
| D | Inspection provision, requirements, method and equipment (swe: kontrollbestämmelse) | x |
| E | Description | x |
| F | Wiring table (swe: förbindningstabell) | x |
| OH | Order Handling | x |

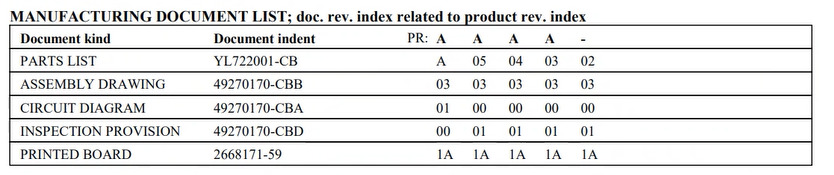

Example:
Maintenance
Maintenance is covered by the contents of the parts list.
Reviews
Approval of documents is done by product owner or cluster lead.
Owner: Hardware development
